Regular price $22.86 $16.99 Sale



If you are using lots of electronic devices to your car's cigarette lighter.  You need to know the condition of your car battery to prevent yourself from being unable to start your car and potentially stuck in a bad place.  With our 12V Car Battery Tester Altenator & Starter Analyzer you can check your own battery and know if it just needs to be charged, starter issues or altenator issues.  Ensures that you are not being charged to replace or fix.

If you are using lots of electronic devices to your car's cigarette lighter.  You need to know the condition of your car battery to prevent yourself from being unable to start your car and potentially stuck in a bad place.  With our 12V Car Battery Tester Altenator & Starter Analyzer you can check your own battery and know if it just needs to be charged, starter issues or altenator issues.  Ensures that you are not being charged to replace or fix.

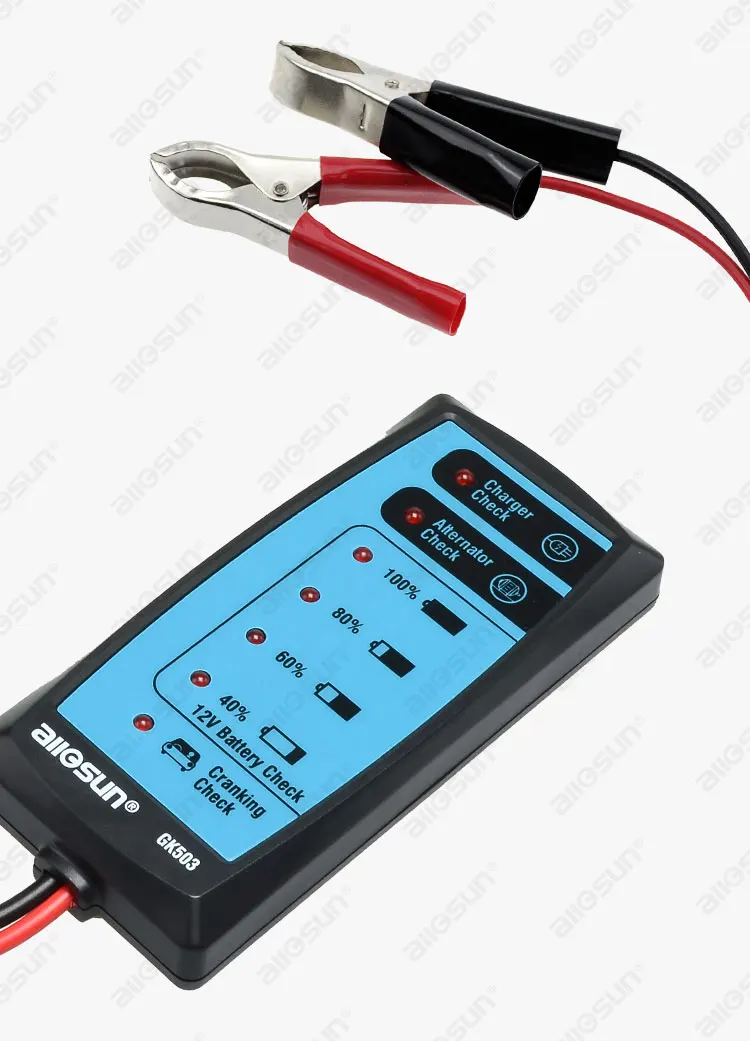

12V Car Battery Tester Altenator & Starter Analyzer Features:

  • all-sun GK503 Mini 12V Battery Check Automotive/ Car Battery
  • Tester Charger/ Alternator/ Cranking Check with 6-LED Display
  • Alternator Check

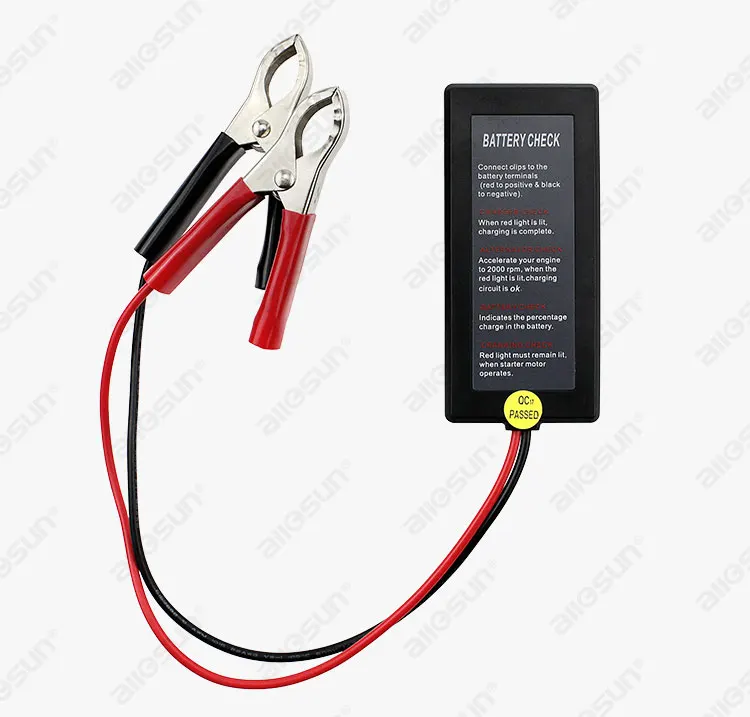

  • To check the charging circuit of a 12V vehicle battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the vehicle battery, and
  • connect the black clip of the tester to the negative terminal of the vehicle battery. Accelerate your engine to 2000 rpm. If the red light against " Alternator
  • Check " is lit, the charging circuit is OK.
  • Battery Check
  • An accurate indication of a battery's charge level will be possible only if the battery has not been charged or discharged for at least 30 minutes. To
  • check the charge level of a 12V battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the battery, and connect the black
  • clip of the tester to the negative terminal of the battery. If none of the red lights are lit, check the connections of the tester to the battery. The red lights
  • will indicate the approximate charge level of the battery.
  • SPECIFICATION
  • Operating Environment: temperature: 0°C ~ 40°C
  • relative humidity: < 75%
  • Storage Environment: temperature: -10°C~ 50°C
  • relative humidity: < 85%
  • Size: 102×46×16mm ( main body only )
  • Weight: About 73g ( GK503 only )
  • About 43g ( GK503A only )
  • WARNING
  • 1. Before use, inspect the tester. Do not use the tester if it is damaged.
  • 2. Before use, verify the tester's operation by testing a known 12V battery.
  • 3. Always follow the relevant instructions and procedures indicated in the vehicle's users manual and service manual.
  • 4. Do not use the tester where explosive gas, vapor, or dust is present.
  • 5. To avoid personal injury and tester damage, do not touch any moving or turning object of vehicle.
  • Do not touch any high-temperature object with hand or skin.
  • 6. To avoid electric shock, don't touch any naked conductor with hand or skin.
  • 7. Use caution when working with voltage above 30V ac rms, 42V peak, or 60V dc. Such voltages pose a shock hazard.

Model Number: GK503
Type: Vehicle Battery Tester

  • DIY Supplies: Electrical
  • Brand Name: all sun
  • Alternator Checking: Yes
  • Battery Test: Yes
  • Charging Test: Yes
  • Cranking Test: Yes
